Iterator


Iterator pattern is very commonly used design pattern in Java and .Net programming environment. This pattern is used to get a way to access the elements of a collection object in sequential manner without any need to know its underlying representation.



Iterator in Java recognizable by behavioral methods sequentially returning instances of a different type from a queue

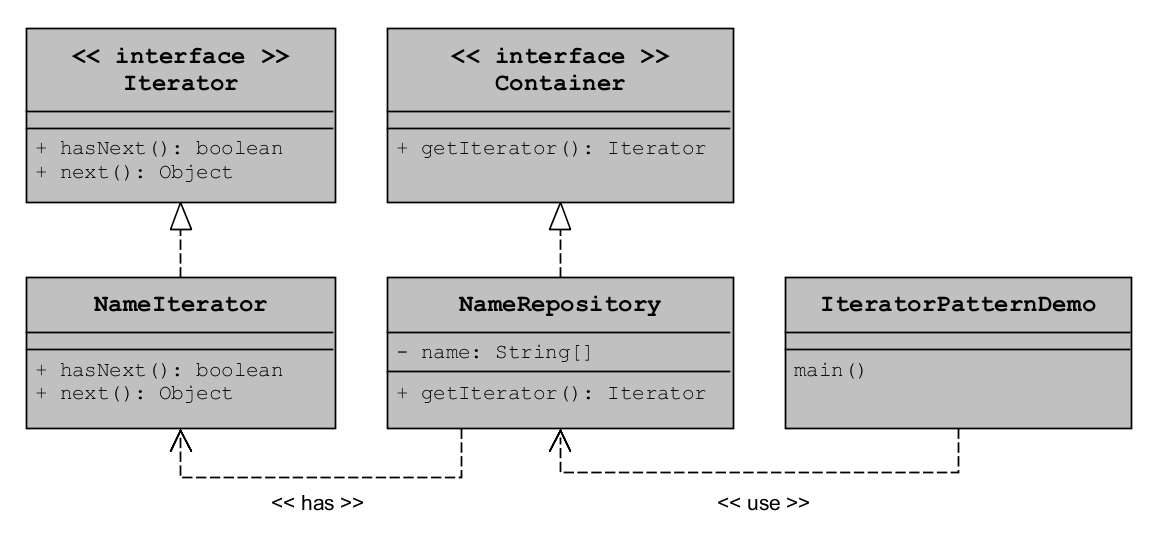

public interface Iterator {
   public boolean hasNext();
   public Object next();
}

public interface Container {
   public Iterator getIterator();
}

public class NameRepository implements Container {
   public String names[] = {"Robert" , "John" ,"Julie" , "Lora"};

   @Override
   public Iterator getIterator() {
      return new NameIterator();
   }

   private class NameIterator implements Iterator {

      int index;

      @Override
      public boolean hasNext() {

         if(index < names.length){
            return true;
         }
         return false;
      }

      @Override
      public Object next() {

         if(this.hasNext()){
            return names[index++];
         }
         return null;
      }
   }
}

public class IteratorPatternDemo {

   public static void main(String[] args) {
      NameRepository namesRepository = new NameRepository();

      for(Iterator iter = namesRepository.getIterator(); iter.hasNext();){
         String name = (String)iter.next();
         System.out.println("Name : " + name);
      }
   }
}
